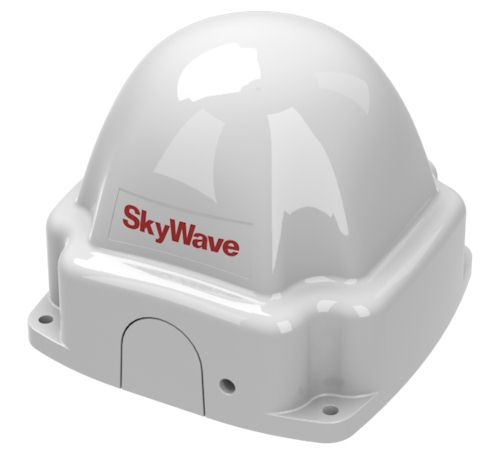

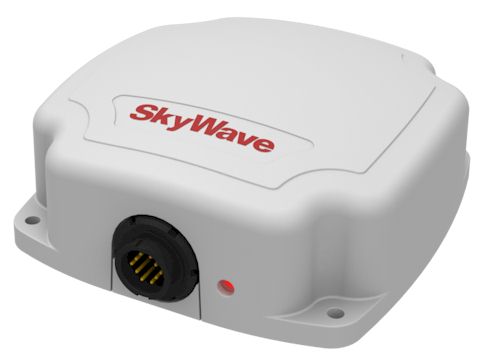

Skywave IDP-680 & IDP-690 |
|
 |
|
 |
SATELLITE COMMUNICATION |
| |
Satellite Service |
Two-way, IsatData Pro |
| |
Coverage |
Global |
| |
From-Mobile Message |
6,400 bytes |
| |
To-Mobile Message |
10,000 bytes |
| |
Typical Latency |
< 15 sec, 100 bytes |
| |
Elevation Angle (IDP-680) |
+20 to +90° |
| |
Elevation Angle (IDP-690) |
-5° to +90° |
| |
Frequency |
Rx:1525.0 to 1559.0 MHz
Tx:1626.5 to 1660.5 MHz |
| |
EIRP (IDP-680/IDP-690) |
7.0 dBW/5.0 dBW |
GPS |
| |
Acquisition Time |
Warm: 8 sec; Cold: 36 sec |
| |
Accuracy |
4 m (CEP) |
| |
Sensitivity |
Acquisition: -136 dBm
Tracking: -146 dBm |
| |
High Sensitivity GPS option available |
EXTERNAL INTERFACES |
| |
Inputs/Outputs |
4 - Analog or Digital In/Out |
| |
Serial |
1 - RS232, 1 - RS485 |
ELECTRICAL |
| |
Input Voltage |
+9 - 32V |
| |
Power Consumption
(Typical@12VDC, 22°C) |
Receive Mode: TBD
Transmit Mode: TBD
Hibernate Mode: TBD |
| |
Mating Connector |
CHOGORI CGRCD-10SKFA-LL7001 |
PROGRAMMING |
| |
Lua scripting engine with core services. SDK with GUI development tools available. GPS NMEA output available |
| |
Data Log Capacity |
TBD |
| |
Geofencing |
128 Polygons |
ENVIRONMENTAL |
| |
Operating Temperature |
-40°C to +85°C |
| |
Storage Temperature |
-40°C to +85°C |
| |
Dust & Water Ingress |
IP67 |
| |
Vibration |
SAE J1455 (Sec 4.9, 4.2)
MIL-STD-810G (Sec 514.6) |
| |
Shock |
MIL-STD-810G (Sec 516.6) |
