iridium

ASE-9575
Station d'accueil
Iridium Extreme

ase applied satellite engineering

Ces produits ne sont plus disponibles.

Fixed Station Terminal for Iridium 9575 Handsets (EXTREME)

Description - Caractéristiques Techniques - Accessoires


ASE-9575-E2
Station d'accueil avec Micro HP à main

Station d'accueil ASE-9575-E2

ASE-9575-H
Station d'accueil avec Combiné

Station d'accueil ASE-9575-H

ASE-9575-E1
Station d'accueil avec Micro câble et HP

Station d'accueil ASE-9575-E1

Tous les modèles sont livrés avec :
un étrier RAM, une antenne GPS et câble 6 m, un adaptateur AC/DC universel et un câble d'alimentation DC.


Description

Enhances Iridium Extreme™ Handset
The ASE Extreme Dock supports and enhances the power of the 9575 handset by coupling external Iridium and GPS signals and exposing all handset ports and buttons to the user when docked. This includes easy access to the SOS emergency button. The ASE Extreme Dock securely locks the handset in place and provides a latching connection to eliminate vibration and ensure reliable communications even in the most rugged conditions.

Innovative Voice and Data Connections
A variety of voice connections are possible with the ASE Extreme Dock which features a ‘unique to the industry’ palm held speaker/mic with push-to-talk (PTT) operation that is familiar with many first responders and security personnel. Other voice interfaces include standard speaker/mic for in-vehicle hands-free operation, privacy intelligent handset, and optional POTS/RJ-11 for long distance solutions, wireless handsets, and office PBX integration. ASE’s exclusive SmartDial feature further simplifies satellite dialing from both the POTS/RJ-11 and privacy handset interfaces.

For data use, the ASE Extreme Dock supports SMS text messaging and provides a direct USB connection to the 9575 handset, requiring no additional drivers or upgrades beyond the standard Iridium handset driver. Additionally, this port fully supports Iridium’s AxcessPoint to provide a global Wi-Fi hotspot for devices such as smartphones, tablets and laptops, connecting users in ways never before possible.

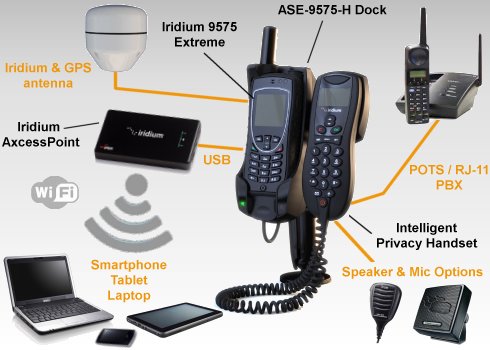

Exemple de configurations

Station d'accueil ASE-9575
Liaison POTS/RJ11 uniquement avec les versions compatibles.


Antenna Solutions
The ASE Extreme Dock accepts a male TNC for Iridium and a male SMA for GPS (mag-mount GPS antenna included). Therefore, in-vehicle applications require no additional antennas when used together with Iridium’s mag-mount antenna supplied with their handset. For non-vehicle applications, ASE offers a variety of marine and dual-mode antenna solutions.

Intelligent Star8™ Diagnostics
To assist with the often overlooked, yet critical aspects of antenna placement, obstructions, and cable lengths, ASE developed Star8™ Diagnostics. Once an installer or end user activates our Star8™ features on site, diagnostic records are created, including: an instant report, a time-lapsed report, and a time-lapsed assessment that factors in satellite orbits. These evaluations are readily accessible by the user and may be shared with the service provider’s technical team, who then can remotely assess the health and robustness of their particular voice and data connections. Star8™ features are accessible via the privacy handset and POTS/RJ-11 interfaces.


Caractéristiques Techniques

    Features
  • Hands-Free Operation
  • GPS Reporting
  • SMS Texting
  • Single All-In-One Compact Design
  • SOS Messaging
  • Iridium Voice Communication
  • Battery Charger
  • Supports Iridium WiFi Access Point
  • POTS / RJ11 for PBX or Wireless Base Station - Modèles compatibles uniquement

    Mechanical Specifications
  • Dimensions : 16,94 x 6,99 x 6,35 cm (L x W x H)
  • Weight : 680 g
  • Mounting Direct wall mount or Universal Mounting (see accessories)

    Electrical Specifications
  • Operating Voltage Range : 9 – 36 VDC unregulated
  • Power Consumption : 12 watts peak

    Environmental Specifications
  • Operating Temperature Range : – 15°C to + 70°C
  • Exposure Dry, protected location per IEC 60945

    Iridium Antenna Specifications
  • Operating Temperature Range (without loss of function) : – 40°C to + 85°C
  • Measurement Frequency Range : 1616 MHz - 1626.5 MHz
  • Return Loss (minimum ) : 9.5 dB (< 2:1 VSW R)
  • Gain (weighted average minimum) : 0.0 dBic
  • Minimum "Horizon" Gain : – 2.0 dBic (82 degree conic average)
  • Nominal Impedance : 50
  • Polarization : Right Hand Circular (RH CP)
  • Basic Pattern : Omnidirectional and Hemispherical

    Note : The antenna cable must ensure a loss of < 3 dB and the minimum link margin of 12.1 dB must be maintained.



Accessoires

Référence Désignation
Accessoires
RST215 Antenne magnétique Beam avec 5m de câble et connecteur TNC 195,00 € HT 234,00 € TTC
AT621-5B Antenne magnétique véhicule + 5 m de câble
Diamètre : 9,2 cm.
205,00 € HT 246,00 € TTC
RST210 Antenne fixe Marine Beam déportée avec embase 1 pouce (sans câble) 219,00 € HT 262,80 € TTC
RST710 Iridium Helix fixed mast antenna (TNC termination) - Marine fixation 1 pouce - sans câble 307,00 € HT 368,40 € TTC
RST910 Iridium Helix fixed mast antenna (TNC termination) - Fixation par vis avec équerre et attache tube - sans câble 250,00 € HT 300,00 € TTC
RST220 Antenne Beam à visser (bolt antenna) avec 5m de câble et adaptateur SMA vers TNC 200,00 € HT 240,00 € TTC
RST250 Antenne Beam magnétique dual mode GPS/Iridum avec 5m de câble
Légère et profil bas.
200,00 € HT 240,00 € TTC
RST205 Antenne Beam magnétique dual mode GPS/Iridum avec 5m de câble
Plus lourde.
350,00 € HT 420,00 € TTC
RST202 Antenne marine Beam fixe dual mode Iridium GPS fixation mât/poteau/rail 310,00 € HT 372,00 € TTC
CABLE 10-TNC Câble antenne 10 mètres TNC/TNC 180,00 € HT 216,00 € TTC
CABLE 15-TNC Câble antenne 15 mètres TNC/TNC 205,00 € HT 246,00 € TTC
CABLE 20-TNC Câble antenne 20 mètres TNC/TNC 420,00 € HT 504,00 € TTC




Antenne Active AD-511

Antenne Active AD-511
Livrée avec boîtier d'interface, 1m de câble et étriers de fixation.
1290,00 € HT (1548,00 € TTC)

L'antenne active Iridium AD-511 est conçue pour permettre des installations Iridium avec jusqu'à 160 mètres de câble coaxial RF, sans aucune dégradation de performance, par rapport à seulement 30 mètres maximum pour un dispositif d'antenne passive standard.

Ces longueurs de câble étendues offrent la possibilité de fournir des installations Iridium sur les navires ou sur terre où, auparavant, une solution Iridium ne pouvait pas fonctionner.

L'antenne active Iridium AD-511 est fournie sans câble coaxial en standard, mais permet des longueurs prédéfinies entre 27 et 160 mètres sous réserve d'utiliser du câble coaxial certifié.

Le pack se compose de l'antenne active avec support de fixation robuste en alliage et du boîtier d'alimentation. Celui-ci est conçu pour rester à proximité du téléphone Iridium et nécessite une entrée d'alimentation en courant continu entre 18 et 36VDC (alimentation non inclus). Un câble coaxial de 1 mètre est fourni pour connecter le téléphone Iridium au boîtier d'alimentation.

    Accessoires pour Antenne active Iridium AD-511
  • ASE-PS071 : Convertisseur AC/DC et câble d'alimentation AC : 140,00 € HT
  • AD511-27M : Câble antenne 27m N-N : 150,00 € HT
  • AD511-40M : Câble antenne 40m N-N : 290,00 € HT
  • AD511-46M : Câble antenne 46m N-N : 320,00 € HT
  • AD511-70M : Câble antenne 70m N-N : 490,00 € HT
  • AD511-88M : Câble antenne 88m N-N : 1500,00 € HT
  • AD511-108M : Câble antenne 108m N-N : 1640,00 € HT
  • AD511-120M : Câble antenne 120m N-N : 2350,00 € HT
  • AD511-162M : Câble antenne 162m N-N : 6620,00 € HT
